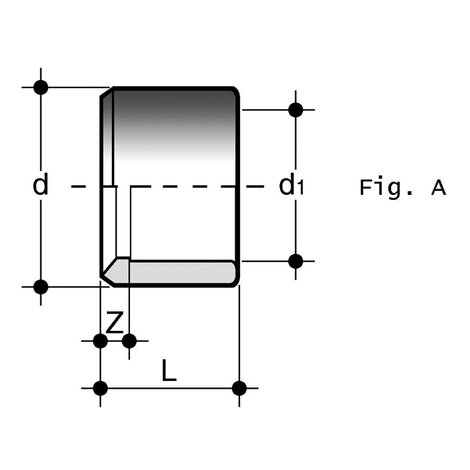

DIV - Fig. A
Solvent weld fittings - reducers.

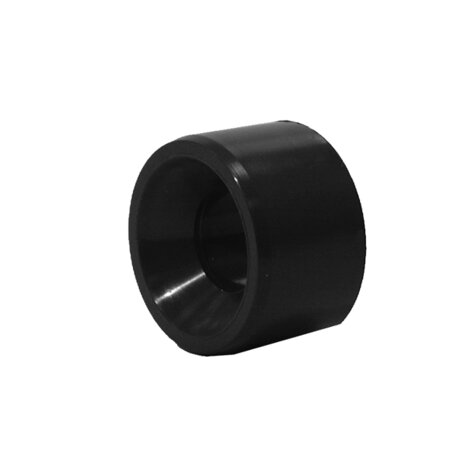

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig. A).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Reference | d x d1 | PN | L | Z | g | |
|---|---|---|---|---|---|---|
| DIV016012 | 16 x 12 | 16 | 14 | 2 | 1 | |
| DIV020016 | IF | 20 x 16 | 16 | 16 | 2 | 3 |
| DIV025020 | IF | 25 x 20 | 16 | 19 | 3 | 5 |
| DIV032020 | I | 32 x 20 | 16 | 22 | 6 | 15 |
| DIV032025 | IF | 32 x 25 | 16 | 22 | 3,5 | 10 |
| DIV040032 | IF | 40 x 32 | 16 | 26 | 4 | 17 |
| DIV050040 | IF | 50 x 40 | 16 | 31 | 5 | 32 |
| DIV063050 | IF | 63 x 50 | 16 | 38 | 7 | 65 |
| DIV075063 | IF | 75 x 63 | 16 | 44 | 6 | 85 |
| DIV090075 | IF | 90 x 75 | 16 | 51 | 7 | 150 |
| DIV110090 | IF | 110 x 90 | 16 | 61 | 9 | 270 |
| DIV125110 | IF | 125 x 110 | 16 | 69 | 8 | 285 |
| DIV140110 | I | 140 x 110 | 16 | 76 | 17 | 645 |
| DIV140125 | IF | 140 x 125 | 16 | 76 | 9,5 | 350 |
| DIV160140 | IF | 160 x 140 | 16 | 86 | 10 | 565 |
| DIV225200 | 225 x 200 | 16 | 119 | 13 | 1380 | |
| DIV250200 | 250 x 200 | 10 | 132 | 25 | 3500 | |
| DIV250225 | 250 x 225 | 10 | 132 | 12 | 2100 | |
| DIV280250 | *280 x 250 | 10 | 147 | 15 | 2500 |
I: IIP 122 F: AFNOR NF04
*resale product
