DIFV

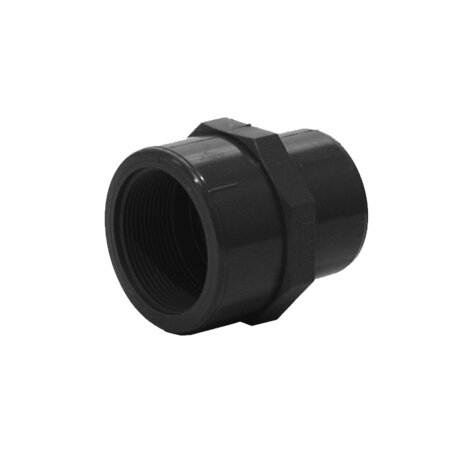

Adaptor fittings.

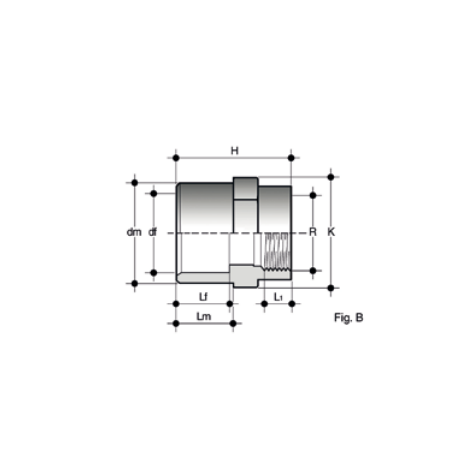

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded female end R (fig. B).
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Reference | dm x df x R | PN | E | H | K | L1 | Lf | Lm | g |
|---|---|---|---|---|---|---|---|---|---|
| DIFV020016012 | 20 x 16 x 1/2" | 16 | - | 39 | 30 | 15 | 14 | 16 | 18 |
| DIFV025020034 | 25 x 20 x 3/4" | 16 | - | 45 | 36 | 16,3 | 16 | 19 | 28 |
| DIFV032025100 | 32 x 25 x 1" | 16 | - | 51 | 46 | 19,1 | 19 | 22 | 49 |
| DIFV040032114 | 40 x 32 x1"1/4 | 16 | - | 62 | 54 | 21,4 | 22 | 26 | 74 |
| DIFV050040112 | 50 x 40 x 1"1/2 | 16 | - | 72 | 65 | 21,4 | 26 | 31 | 127 |
| DIFV063050200 | 63 x 50 x 2" | 16 | - | 86 | 80 | 25,7 | 31 | 38 | 190 |
| DIFV075063200 | 75 x 63 x 2" | 16 | - | 76 | 76 | 25,7 | 38 | 44 | 180 |
| DIFV075063212 | 75 x 63 x 2"1/2 | 16 | - | 99 | 95 | 30,2 | 38 | 44 | 280 |
| DIFV090075212 | 90 x 75 x 2"1/2 | 16 | - | 84 | 95 | 30,2 | 44 | 51 | 300 |
| DIFV090075300 | 90 x 75 x 3" | 16 | - | 114 | 110 | 33,3 | 44 | 51 | 470 |
| DIFV110090300 | 110 x 90 x 3" | 16 | - | 100 | 110 | 33,3 | 51 | 61 | 450 |
| DIFV110090400 | 110 x 90 x 4" | 16 | - | 134 | 130 | 39,3 | 51 | 61 | 670 |
| DIFV125110400 | 125 x 110 x 4" | 16 | - | 111 | 131 | 39,3 | 61 | 69 | 550 |
