DIFV
Adaptor fittings.

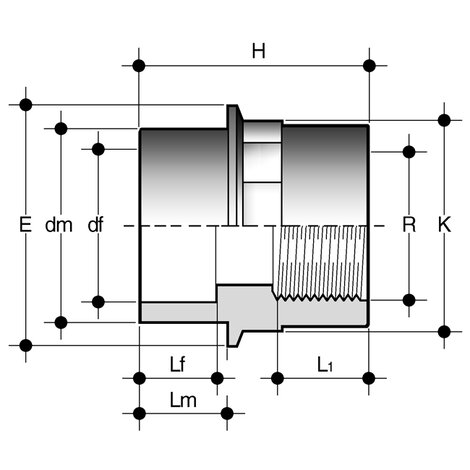

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded female end R (fig. A).
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Reference | dm x df x R | PN | E | H | K | L1 | Lf | Lm | g |
|---|---|---|---|---|---|---|---|---|---|
| DIFV020016038 | 20 x 16 x 3/8" | 16 | 28 | 36 | 24 | 11,4 | 14 | 16 | 11 |
| DIFV025020012 | 25 x 20 x 1/2" | 16 | 34 | 42 | 29 | 15 | 16 | 19 | 17 |
| DIFV032025034 | 32 x 25 x 3/4" | 16 | 40 | 49 | 35 | 16,3 | 19 | 22 | 26 |
| DIFV040032100 | 40 x 32 x 1" | 16 | 52 | 57 | 44 | 19,1 | 22 | 26 | 49 |
| DIFV050040114 | 50 x 40 x 1"1/4 | 16 | 59 | 67 | 54 | 21,4 | 26 | 31 | 66 |
| DIFV063050112 | 63 x 50 x 1"1/2 | 16 | 70 | 77 | 64 | 21,4 | 31 | 38 | 129 |
