DBMM - Adaptor

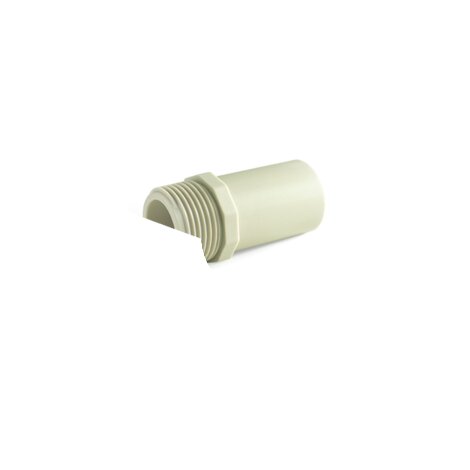

Double adaptor for butt welding (d), BSP (R) threaded female end.
Series of fittings designed for conveying fluids under pressure with a thread and weld connection system (butt welding).

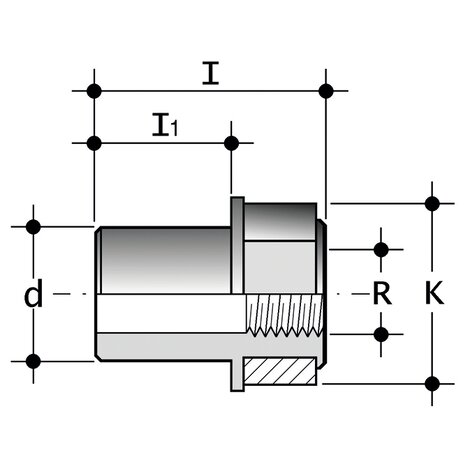

| Reference | d x R | K | I | I1 | g |
|---|---|---|---|---|---|
| DBMM11020012 | *20 x 1/2” | 30 | 58 | 39 | 16 |
| DBMM11025034 | *25 x 3/4” | 36 | 63 | 41 | 21 |
| DBMM11032100 | *32 x 1” | 46 | 71 | 44 | 40 |
| DBMM11040114 | *40 x 1” 1/4 | 55 | 79 | 49 | 58 |
| DBMM11050112 | *50 x 1” 1/2 | 62 | 84 | 55 | 80 |
| DBMM11063200 | *63 x 2” | 75 | 97 | 63 | 140 |
*resale products
