DBME - Adaptor

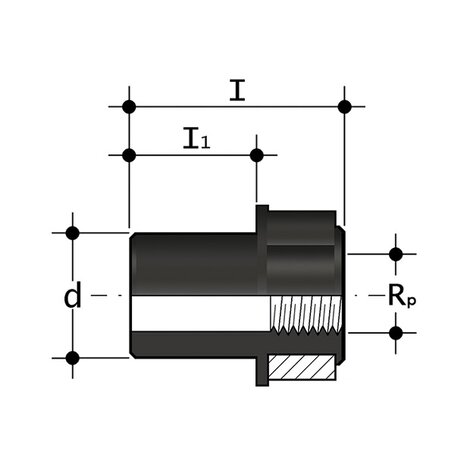

Adaptor for butt welding , BSP (Rp) threaded female end, SDR 11 - S5.
Series of fittings designed for conveying fluids under pressure with a thread and weld connection system (butt welding).
| Reference | d | Rp | l | l1 | g |
|---|---|---|---|---|---|
| DBME11020012 | *20 | 1/2'' | 65 | 41 | 16 |
| DBME11025012** | 25 | 1/2'' | 37 | 16 | 16 |
| DBME11025034 | *25 | 3/4'' | 63 | 41 | 22 |
| DBME11032100 | *32 | 1'' | 71 | 44 | 41 |
| DBME11040114 | *40 | 1'' 1/4 | 79 | 49 | 62 |
| DBME11050112 | *50 | 1'' 1/2 | 88 | 55 | 82 |
| DBME11063200 | *63 | 2'' | 97 | 63 | 143 |
* resale products
** Reduced adaptor, with metal ring reinforcement on female threaded end. Reduced PN.
- Size range: d 20 ÷ 63 (mm); R 1/2” ÷ 2”
- Nominal pressure: SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Thread: ISO 228-1, DIN 2999
- Construction criteria: EN ISO 15494
- Test methods and requirements: EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307, UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
