COMPACT, activated sludge system
Non-collective treatment of domestic wastewater, intended to serve from 32 up to 45 users. High effluent quality for discharge into surface water body.

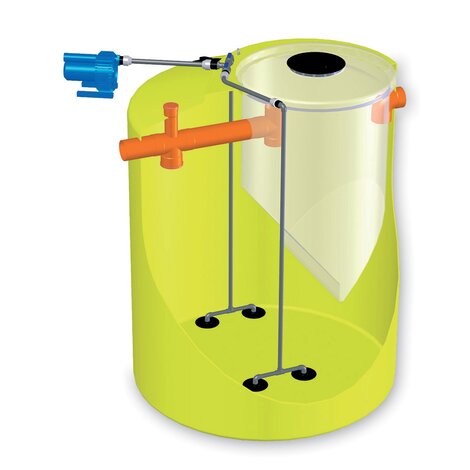

One-piece polyethylene packaged Activated Sludge system
| note : | Delivery includes: timer, activation enzymes, and chlorine disinfection tablet. Compressor needs to be installed outdoors and under cover. Compliance with standard: 2006/42/CE - 2004/108/CE - 2006/95/CE |
| Use : | Suitable for treating domestic wastewater for subsequent discharge onto land. |

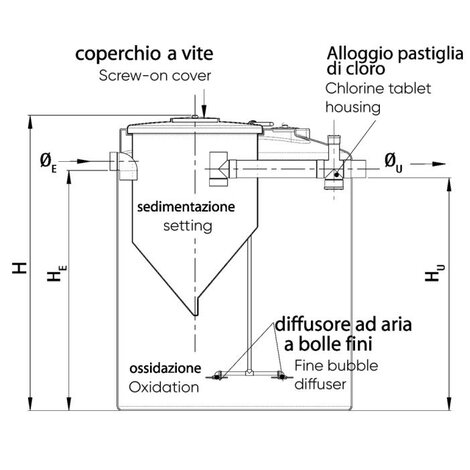

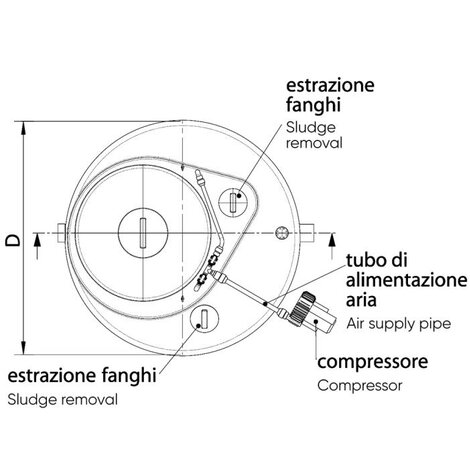

| Reference | D (cm) | Height H (cm) | HE (cm) | HU (cm) | V ox (m3) | V sett (m3) | ØE e ØU (mm) | Power (Kw) | Item | Users (E.I.) |
|---|---|---|---|---|---|---|---|---|---|---|
| IS08015 | 215 | 220 | 173 | 168 | 4,7 | 1,3 | 140 | 200 (W) | F.A.6 | 32 |
| IS08016 | 215 | 270 | 217 | 212 | 6,7 | 1,7 | 160 | 700 (W) | F.A.7 | 45 |
| IS08017 | 215 | 305 | 251 | 246 | 8,3 | 1,7 | 160 | 1100 (W) | F.A.8 | 60 |
