BIFXC_FKM - Adaptor union

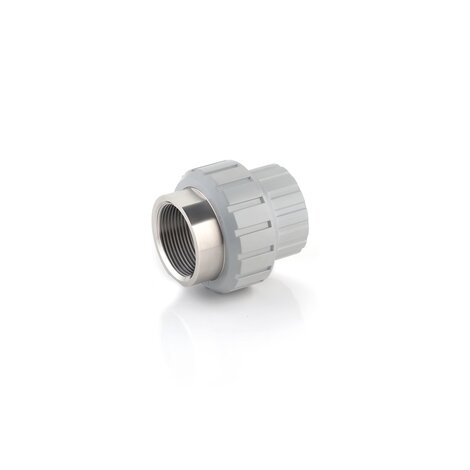

Adaptor union in PVC-C/STAINLESS steel with solvent weld socket d and BSP threaded STAINLESS steel female end R with O-Ring in EPDM or FKM.

Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
Go back Data sheet

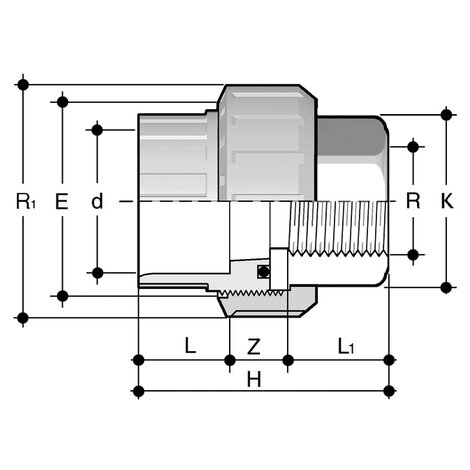

Reference d x R R1 PN E H K L L1 Z g
BIFXC016038F 16 x 3/8" 3/4" 16 33 45,5 20 14 13,5 18 52
BIFXC020012F 20 x 1/2" 1" 16 41 48,5 25 16 16,5 16 83,5
BIFXC025034F 25 x 3/4" 1"1/4 16 50 54,5 32 19 18,5 17 156
BIFXC032100F 32 x 1" 1"1/2 16 58 59,5 38 22 19,5 18 176
BIFXC040114F 40 x 1"1/4 2" 16 72 68,5 48 26 21,5 21 361
BIFXC050112F 50 x 1"1/2 2"1/4 16 79 84,5 55 31 23 30,5 450
BIFXC063200F 63 x 2" 2"3/4 16 98 94,5 69 38 27 29,5 792
