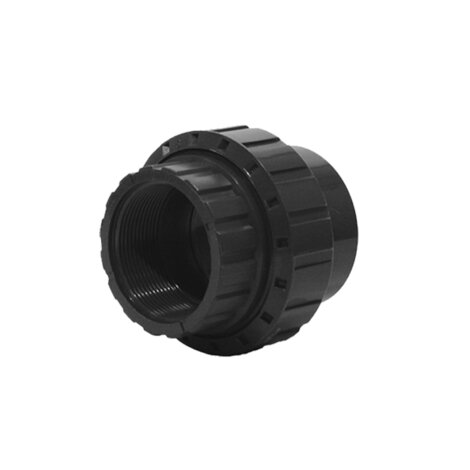

BIFV - Union

Union with solvent weld socket d and BSP threaded female end R with O-Ring in EPDM.

Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
Go back Data sheet
Reference d x R R1 PN E H L L1 Z g
BIFV016038E 16 x 3/8" 3/4" 16 33 41 14 11,4 15,6 22
BIFV020012E 20 x 1/2" 1" 16 41 45 16 15 14 35
BIFV025034E 25 x 3/4" 1"1/4 16 50 51 19 16,3 15,7 62
BIFV032100E 32 x 1" 1"1/2 16 58 57 22 19,1 15,9 85
BIFV040114E 40 x 1"1/4 2" 16 72 67 26 21,4 19,6 145
BIFV050112E 50 x 1"1/2 2"1/4 16 79 72 31 21,4 19,6 180
BIFV063200E 63 x 2" 2"3/4 16 98 88 38 25,7 24 315
BIFV075212E 75 x 2"1/2 3"1/2 10 120 116 44 30,2 34,8 630
BIFV090300E 90 x 3" 4" 10 135 125 51 33,3 40,7 810
BIFV110400E 110 x 4" 5" 10 163 145 61 39,3 44,7 1350
