BIFC - Adaptor union

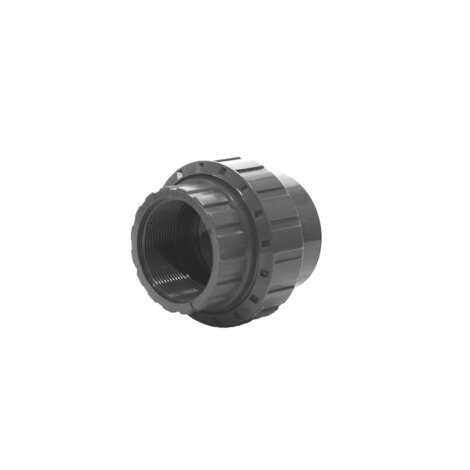

Union with solvent weld socket d and BSP threaded female end R with O-ring in EPDM.
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

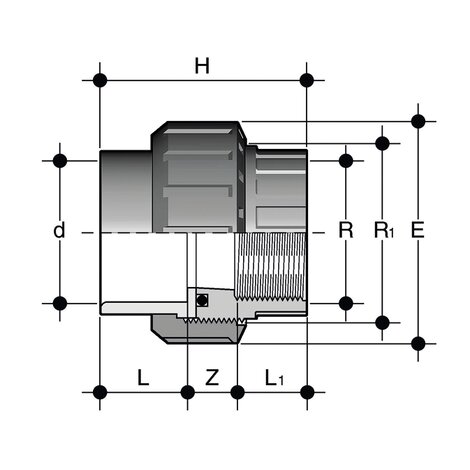

| Reference | d x R | R1 | PN | E | H | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|
| BIFC016038E | 16 x 3/8" | 3/4" | 16 | 33 | 41 | 14 | 11,4 | 15,6 | 25 |
| BIFC020012E | 20 x 1/2" | 1" | 16 | 41 | 45 | 16 | 15 | 14 | 40 |
| BIFC025034E | 25 x 3/4" | 1"1/4 | 16 | 51 | 51 | 19 | 16,3 | 15,7 | 68 |
| BIFC032100E | 32 x 1" | 1"1/2 | 16 | 58 | 57 | 22 | 19,1 | 15,9 | 93 |
| BIFC040114E | 40 x 1"1/4 | 2" | 16 | 72 | 67 | 26 | 21,4 | 19,6 | 158 |
| BIFC050112E | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 72 | 31 | 21,4 | 19,6 | 193 |
| BIFC063200E | 63 x 2" | 2"3/4 | 16 | 98 | 88 | 38 | 25,7 | 24 | 345 |
