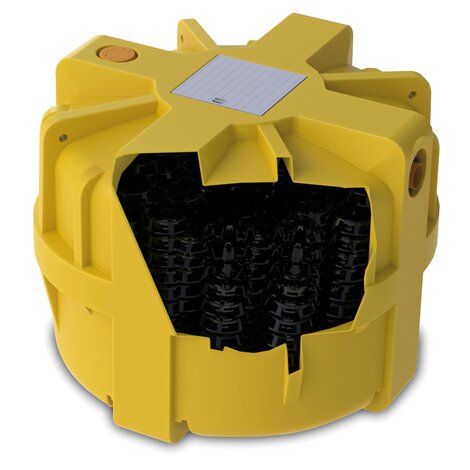

ANAPACKAGE Type HT, anaerobic percolating filter
System based on the use of a polyethylene Anapackage Type HT anaerobic percolating filters, suitable for treating domestic and commercial wastewater.
The complete system setup comprises a one piece polyethylene grease trap for the pre-treatment of greywater; an Imhoff septic tank for the pre-treatment of sewage; and the anaerobic percolating filter to complete sewage treatment so that the resulting effluent can be discharged to a suitable final destination.
Treatment of domestic and commercial wastewater

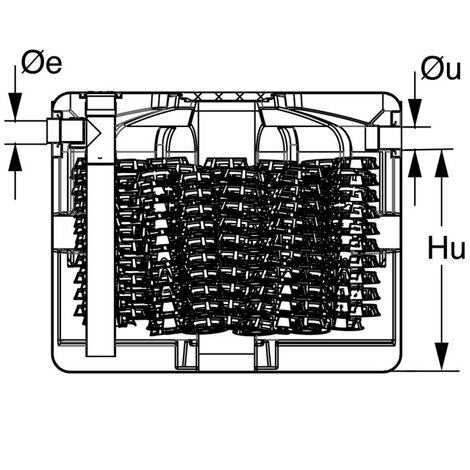

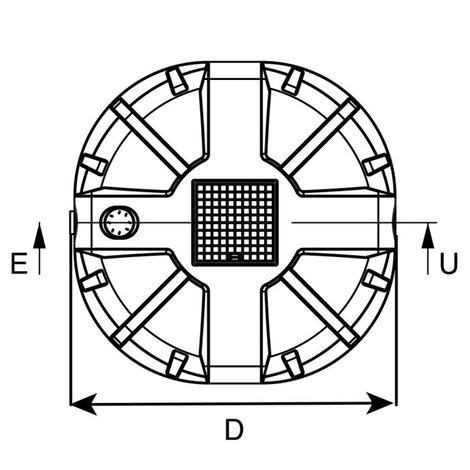

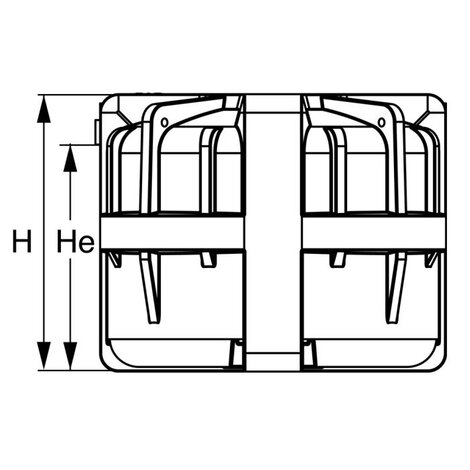

| Reference | D (cm) | Height H (cm) | HE (cm) | HU (cm) | ØE e ØU (mm) | Capacity (litres) | Item | Users (E.I.) | Diameter Cover |
|---|---|---|---|---|---|---|---|---|---|
| IS70210 | 120 | 90 | 70 | 67 | 100 | 1.000 | HT6 | 6 | 40x40 cm |
| IS70215 | 120 | 120 | 100 | 97 | 100 | 1.350 | HT12 | 12 | 40x40 cm |
| IS70220 | 150 | 120 | 97 | 94 | 125 | 2.100 | HT18 | 18 | 40x40 cm |
Downloads
8.2 MB,
PDF
get_app
REDI Technical Handbooks
775.5 KB,
ZIP
DWG PDF
1.8 MB,
ZIP
DWG AUTOCAD
