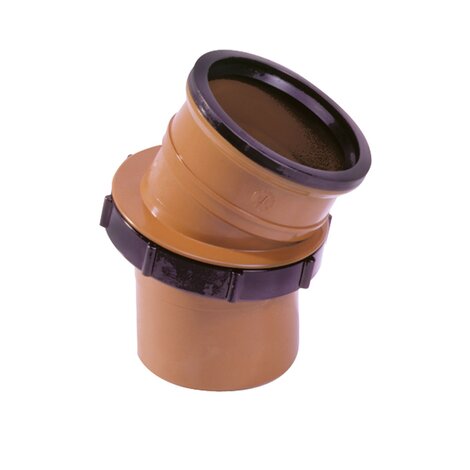

Adjustable bend
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
Note: Gasket Standard Lip Ring
RAL 8023 Red

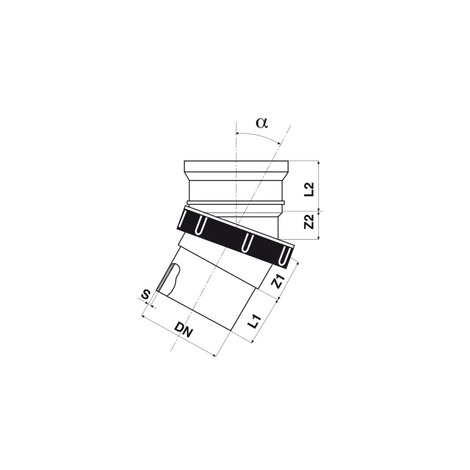

| Reference | DN (mm) | S (mm) | Z1 (mm) | Z2 (mm) | L1 (mm) | L2 (mm) | α | RAL | Gasket |
|---|---|---|---|---|---|---|---|---|---|
| H999941 | 110 | 3,2 | 26 | 36 | 62 | 59 | 5° - 30° | 8023 | Standard |
