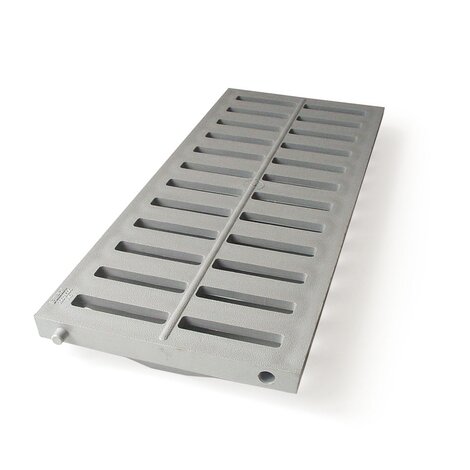

200 Grill Light traffic
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills. These channels can be placed in flat open areas without digging limitations. Use on light duty traffic areas, such as garage fronts, private driveways, yards, pedestrian areas.
Material: PVC
Marking: CE
Regulation: EN124 A15 Load class.
Use: light duty traffic draining grate for 200 channels.
Characteristics:
- antiskid as the knurled surface and the chamfered draining profile avoid water stagnation and ice
- provided with coupling pins
- provided with a central stiffening rib.
IMPORTANT: in the planning stage, the grate breaking load must be scaled down by using a correct safety factor.

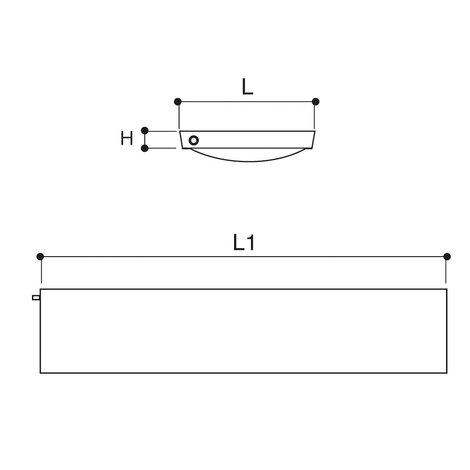

| Reference | RAL | H (mm) | L (mm) | L1 (mm) | kN | I/s | Material |
|---|---|---|---|---|---|---|---|
| 0219004 | 7035 | 20 | 200 | 500 | 61 | 2,8 | PVC |
