VVDV - Angle seat valve DN 10:50

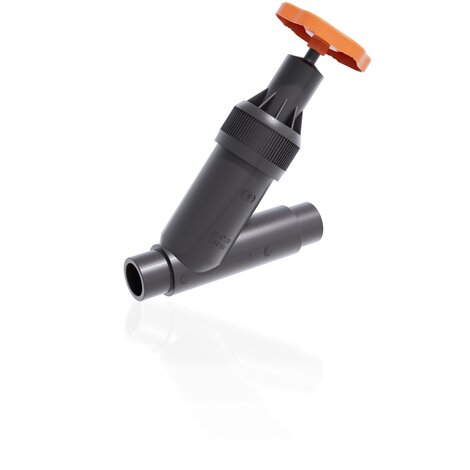

Angle seat valve with male ends for solvent welding, metric series.
The VV angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids.

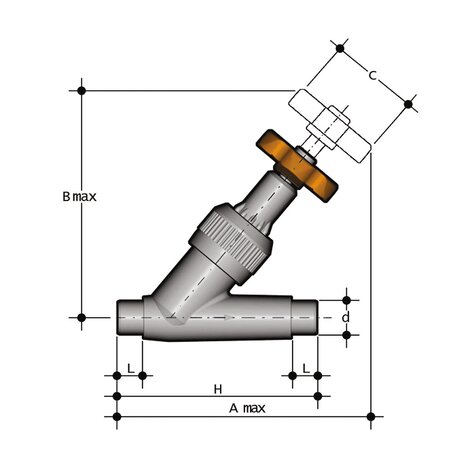

| Reference | d | DN | PN | A max | B max | C | H | L | g |
|---|---|---|---|---|---|---|---|---|---|
| VVDV016E | 16 | 10 | 16 | 136 | 124 | 60 | 114 | 14 | 150 |
| VVDV020E | 20 | 15 | 16 | 146 | 124 | 60 | 124 | 16 | 160 |
| VVDV025E | 25 | 20 | 16 | 165 | 146 | 60 | 144 | 19 | 250 |
| VVDV032E | 32 | 25 | 16 | 188 | 173 | 70 | 154 | 22 | 380 |
| VVDV040E | 40 | 32 | 10 | 217 | 195 | 85 | 174 | 26 | 480 |
| VVDV050E | 50 | 40 | 10 | 247 | 222 | 105 | 194 | 31 | 820 |
| VVDV063E | 63 | 50 | 10 | 299 | 269 | 130 | 224 | 38 | 1345 |
- Connection system for solvent weld, threaded and flanged joints
- Can be installed in any position
- No metal parts in contact with the fluid
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
