DIC (Fig.B) - Reducer

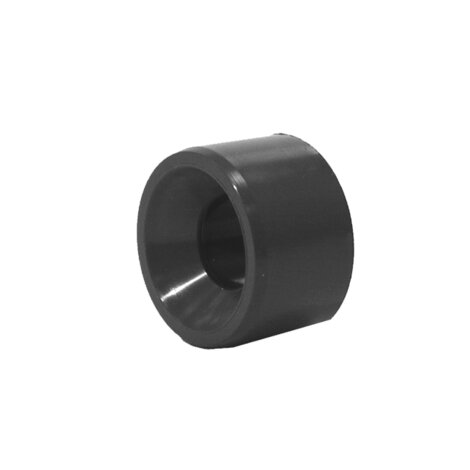

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig.B).

Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
Go back Data sheet
DIC (Fig.B) - Reducer

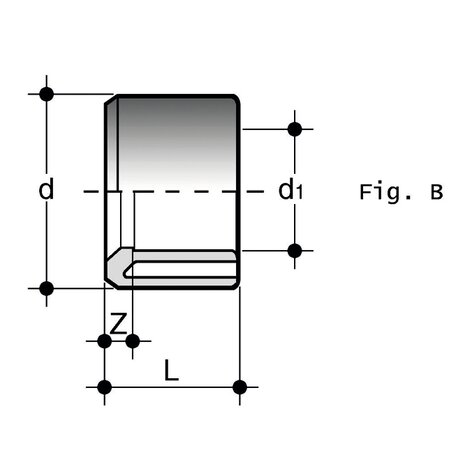

Disegno tecnico del raccordo per incollaggio - riduzioni DIV fig. B
DIC (Fig.B) - Reducer
Disegno tecnico del raccordo per incollaggio - riduzioni DIV fig. B
Reference d x d1 PN L Z g
DIC040020 40 x 20 16 26 10 27
DIC040025 40 x 25 16 26 7 26
DIC050032 50 x 32 16 31 9 39
DIC063032 63 x 32 16 38 16 81
DIC063040 63 x 40 16 38 11,5 84
DIC075050 75 x 50 16 44 12 126
DIC090050 90 x 50 16 51 20 213
DIC090063 90 x 63 16 51 13 209
DIC110063 110 x 63 16 61 23 365
DIC110075 110 x 75 16 61 17 386
DIC160110 160 x 110 16 86 25 1040
DIC225160 225 x 160 10 119 33 2100
