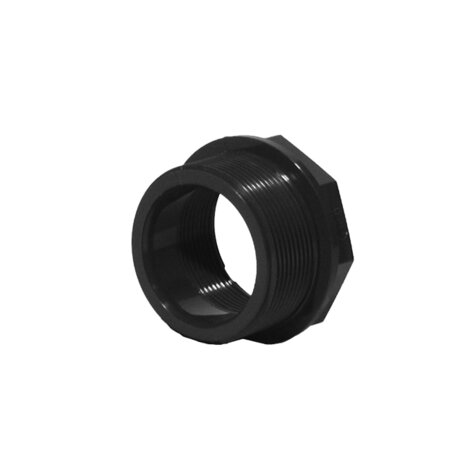

DFV - Reducer
Reducing bush with BSP threaded male end (R) and BSP threaded female end (R1 reduced).
Series of fittings for pipes conveying fluids under pressure with threaded joints.

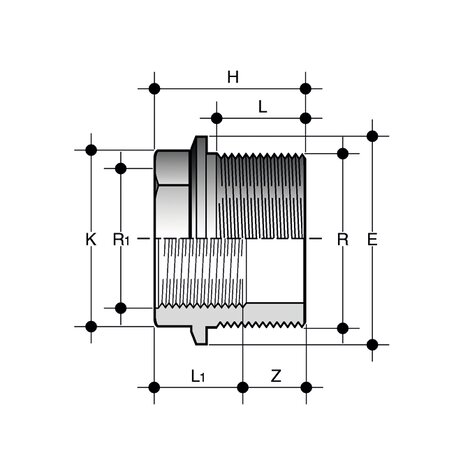

| Reference | R x R[5:1] | PN | E | H | K | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|
| DFV012038 | 1/2" x 3/8" | 16 | 28 | 24 | 23 | 11,4 | 15 | 12.6 | 7 |
| DFV034012 | 3/4" x 1/2" | 16 | 34 | 26,5 | 28 | 15 | 16.3 | 11.5 | 9 |
| DFV100034 | 1" x 3/4" | 16 | 40 | 30,5 | 35 | 16,3 | 19,10 | 14.2 | 17 |
| DFV114100 | 1"1/4 x 1" | 16 | 52 | 34 | 44 | 19,1 | 21.4 | 14.9 | 30 |
| DFV112114 | 1"1/2 x 1"1/4 | 16 | 58 | 35 | 51 | 21,4 | 21.4 | 13.6 | 30 |
| DFV200112 | 2" x 1"1/2 | 16 | 70 | 40 | 64 | 21,4 | 25.7 | 18,6 | 72 |
